F-Tech Pumps › 3" Submersible Pumps

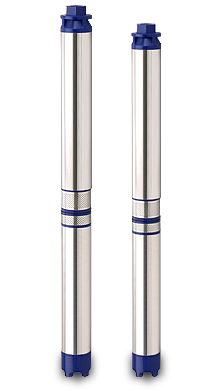

F-Tech's V3 Submersible Pumps are available in size up to 1.50 H.P. with flows upto 80 LPM. V3 submersible pump is ideal for low yielding capacity bores. It is also best suitable where 4" submersible pump could not be fitted, for example old handmade bores. V3 is also suitable for water supply to domestic water supply, complexes, gardens, farms, etc.

Salient Features of V3 Submersible Pumps
  • Superior material of construction.
  • Light weight and compact.
  • Lip seal and sand guard to prevent ingress of impurities into the motor.
  • Easy assembling, dismantling.
  • Both pump and motor are fully serviceable and utilize stainless steel, brass and noryl components for longer life.
Application of V3 Submersible Pumps
3" borewell submersible pump is designed for applications like:
  • Water supply to high-rise buildings, hospitals, raw houses.
  • Housing Complexes, Bunglows.
  • Domestic Water Supply.
  • Gardens, Farms & Nurseries.
Material of Construction - 3" Submersible Pumps
Name of Parts Material Used
Pump Shaft Stainless Steel
Bearing Bush Leaded Bronze
Sleeves Stainless Steel 410 / 431
Couple Stainless Steel 410 / 431
Diffuser GFN-3 Vergine (Noryl) With Stainless Steel Jacket
Impeller GFN-3 Vergine (Noryl) With Stainless Steel Jacket
Outlet Cast Iron
Suction Bracket Cast Iron
Pump Shell Stainless Steel
Hardware Stainless Steel
Material of Construction - 3" Submersible Motor
Name of Parts Material Used
Shaft Stainless Steel 410 / 431
Bearing Bush Leaded Bronze
Sleeves Stainless Steel 431 / 410
Thurst Bearing SS Seagment & Teflon Thrust Plate
Housing Cast Iron
Base Cast Iron
Connection Piece Cast Iron
Copper Special EC Grade As Per IS Standards
Stamping C.R.N.G.O.-M-45 Grade
Stator Shell Stainless Steel
Operating Limitation - 3" Submersible Pumps
PARAMETERS Operating Range
H.P. Range 0.5 H.P. to 1.50 H.P.
Head Range Upto 100 Meters
Discharge at Duty Point 24 to 55 L.P.M.
Maximum Discharge 80 L.P.M.
Maximum Head/Stage 3 Meters
Operating Voltage 180 - 240 Voltage
Maximum Temperature of Liquid 40° C
Maximum permissible amount of sand in water 20 Grams/Cubic Meter
Maximum Voltage Fluctuation +15% -20%
Version Single Phase
From 0.37 kW to 1.1 kW, 220 Volt 50 Hz
# Due to continuous efforts in improvements, information furnished above is subject to change without notice
